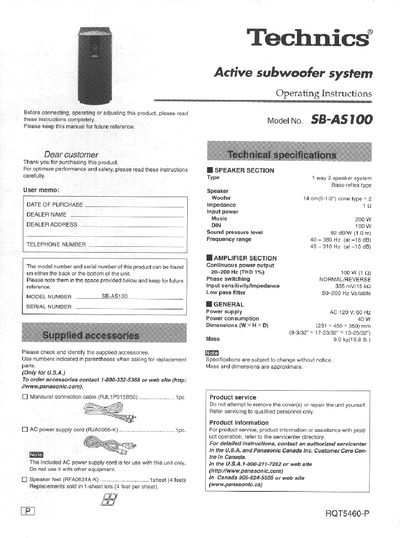

This document provides operating instructions for the Technics SB-AS100 active subwoofer system. It details the specifications of the 2-way bass-reflex speaker system and the amplifier section, including power output and frequency response. The manual guides users through positioning the unit, connecting power and audio cables, and attaching rubber feet to prevent vibration.
| Type | 1 way 2 speaker system |
|---|---|
| Bass-reflex type | Bass-reflex type |
| Speaker Woofer | 14 cm(5- 1/2") cone type * 2 |
| Impedance | 10 ohms |
| Music Power | 200 W |
| DIN Power | 100 W |
| Sound pressure level | 82 dBW (1.0 m) |
| Frequency range | 40-380 Hz (at-16 dB) |
| Continuous power output | 20-200 Hz (THD 1%) |
| Input sensitivity/Impedance | 335 mV/15 kohms |
| Low pass filter | 50-200 Hz Variable |
| Power supply | AC 120 V, 60 Hz |
| Power consumption | 40 W |
| Dimensions | 231 * 450 * 350 mm |
| Mass | 9.0 kg(19.8 Ib.) |
The frequency range is 40-380 Hz at -16 dB.
No, the manual states not to attach this speaker to walls or ceilings.
