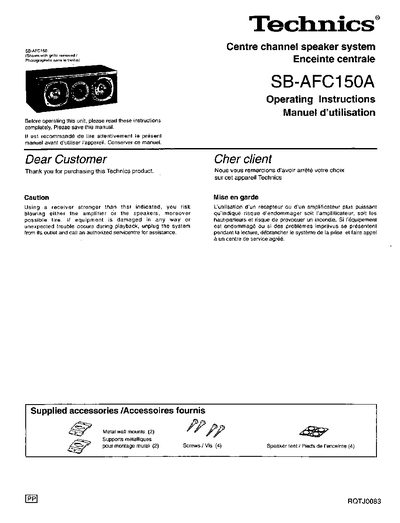

This document provides operating instructions for the Technics SB-AFC150A centre channel speaker system. It details the supplied accessories, including metal wall mounts and speaker feet, and explains how to install the unit either on top of or underneath a TV, or on a wall using the included brackets. The manual also notes that irregular colouring on the TV screen may occur due to magnetic interaction and provides steps to resolve this.
| Type | 2 way, 3 speaker system bass reflex |
|---|---|
| Speakers | Woofer 12 cm cone type x2, Tweeter 2.5 cm dome type x1 |
| Impedance | 8 ohms |
| Input power | 200 W Music, 100 W (DIN) |
| Sound pressure level | 85 dBA (1.0 m) |
| Crossover frequency | 3.5 kHz |
| Frequency response | 52 Hz ~ 40 KHz (-16 dB) |
| Dimensions | 460 x 175 x 235 mm |
| Weight | 5.7 kg (12.6 lbs) |
Reduce the volume setting of the receiver and check the sound source and connections for any problems.
Yes, the speaker can be mounted on the wall with the metal wall mounts that are included in the package.
You risk blowing either the amplifier or the speakers, and there is a risk of fire.
