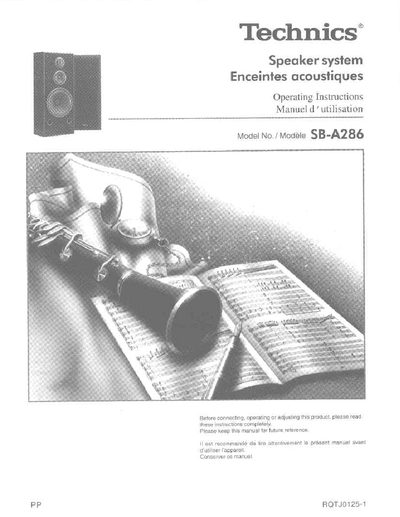

This document provides operating instructions for the Panasonic SB-A286 speaker system. It details how to connect the speakers safely to an amplifier, emphasizing impedance matching (8 ohms) and correct polarity. The manual also includes important safety warnings regarding excessive input power and acoustic feedback from turntables.
The guide further covers optimal placement of the speakers in a room to manage bass response and resonance, along with cleaning instructions and troubleshooting steps for the built-in protection circuitry that interrupts sound during abnormal signals.
| Type | 3 way, 3 speaker system (Bass-reflex type) |
|---|---|
| Impedance | 8 ohms |
| Allowed Input Power (DIN) | 120W |
| Frequency Range (-16 dB) | 35 Hz ~ 35 kHz |
| Dimensions (W x H x D) | 380 X 900 X 285 mm |
The speaker impedance is 8 ohms.
Connect positive (+) wires to positive (+) terminals and negative (-) wires to negative (-) terminals, ensuring no short circuits occur.
Reduce the volume of the amplifier and check the sound source and connections. If no problem exists, the protection circuitry will reset in a few minutes.
