This document is the user manual of YAMAHA NX series speaker stands. It introduces the usage method, precautions, specifications, etc. of the stands.

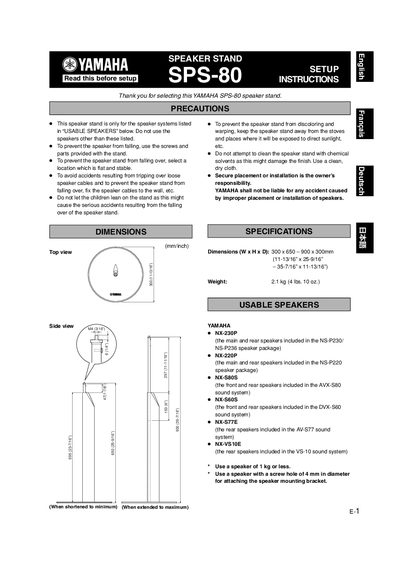

This document provides setup instructions and precautions for the Yamaha SPS-80 speaker stand. It details the necessary parts, lists compatible Yamaha speaker models, and specifies weight and cable diameter limits to ensure safe operation.
The guide outlines a step-by-step procedure for assembling the stand, attaching the speaker mounting bracket, adjusting the telescopic pole height, and securing the unit. It also includes specific instructions on how to manage speaker cables within the stand's structure.
| Weight | 2.1 kg (4 lbs 10 oz) |
|---|---|
| Dimensions (W x H x D) | 300 x 650 — 900 x 300mm |
| Maximum Speaker Weight | 1 kg or less |
| Speaker Mounting Hole Diameter | 4 mm in diameter |
The stand is only for specific systems including NX-230P, NX-220P, NX-S80S, NX-S60S, NX-S77E, and NX-VS10E.
A speaker cable more than 4mm x 2mm in diameter cannot be used if passed through the pole.
