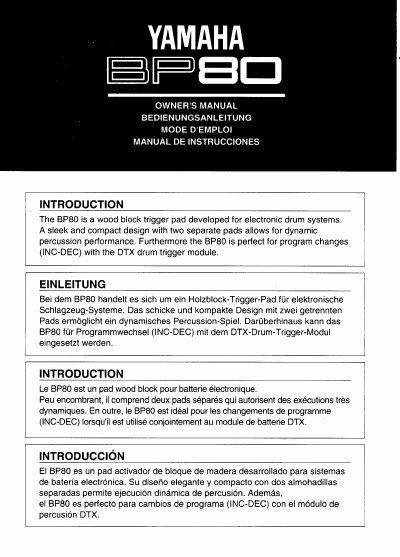

The Yamaha BP80 is a wood block trigger pad designed for electronic drum systems. Its compact design features two separate pads that allow for dynamic percussion performance. The unit is specifically compatible with the DTX drum trigger module for program changes using INC-DEC functions.
To set up the instrument, use the included clamp to connect it to an RS80 or DTX rack system. When connecting to a DTX module, users should utilize INPUT 9/10 or INPUT 11/12. Before playing, adjust the trigger output levels for both pads separately using a small slotted screwdriver. The sensitivity and dynamic range can be customized based on personal preference and playing style.
When using the BP80 with the DTX, connect to INPUT 9/10 or INPUT 11/12.
Use a small slotted screwdriver; turning the knob right increases the level and left decreases it.
