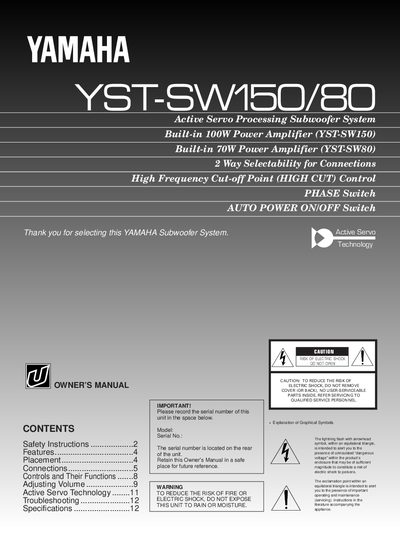

Yamaha YST-SW150/80 Active Servo Subwoofer System Owner's Manual

YST-SW150/80 is a Yamaha subwoofer with a built-in 100W amplifier

Brand: Yamaha
Category: Home Speakers
Document type: User Manual
Language: English
Pages: 12
File format: PDF
File size: 383 KB
Published: 03 July, 2012
Updated: 30 September, 2023
Models: YST-SW150, YST-SW80
MD5 checksum: 35B56527055C07B886F63E98CC56AC4C
PDF: Yamaha YST-SW150/80 Active Servo Subwoofer System Owner's Manual PDF

About this manual

This document is the Owner's Manual for the Yamaha YST-SW150 and YST-SW80 Active Servo Processing Subwoofer Systems. It provides instructions on safety, placement, and connections for these units which feature built-in power amplifiers of 100W and 70W respectively. The manual details how to utilize the High Frequency Cut-off control and Phase switch to optimize sound quality.

What's inside

Safety Instruction
Features
Placement
Connections
Controls and Their Functions
Adjusting Volume
Active Servo Technology
Troubleshooting
Specifications

Specifications

Power Amplifier (YST-SW150)	100W
Power Amplifier (YST-SW80)	70W

Frequently asked questions

What is Active Servo Technology?

It is a technology developed by Yamaha for reproducing higher quality super-bass sound.

How should the subwoofer be placed?

It is recommended to place it on the outside of either the right or the left main speaker.
