This document is a user manual that introduces the usage of the RQ-SX67V radio

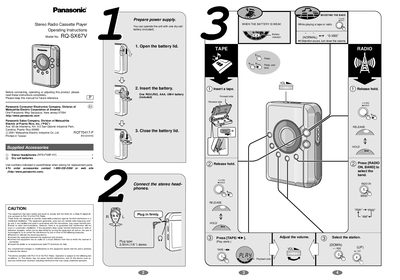

This document provides operating instructions for the Panasonic RQ-SX67V Stereo Radio Cassette Player. It details how to prepare the power supply using included dry cell batteries or rechargeable options, connect headphones, and operate the unit in various modes including tape playback and radio reception.
The manual covers specific functions such as the 'Hold' feature to prevent accidental operation, auto-reverse for multi-side tapes, and preset memory channels for storing up to 30 stations. It also includes troubleshooting guides for common issues like no sound or poor reception, along with safety cautions regarding battery handling and listening habits.
| Frequency range (FM) | 87.9-107.9 MHz |
|---|---|
| Frequency range (AM) | 520-1710 kHz |
| Output jack | HEADPHONES; 242 |
| Battery type | DC1.5V (one RO3/LR03, AAA, UM-4 battery) |
The unit operates with one dry cell battery, specifically a RO3/LR03, AAA, or UM-4 battery.
Up to 30 radio stations can be stored in memory, with 10 channels each for AM, FM1, and FM2.
