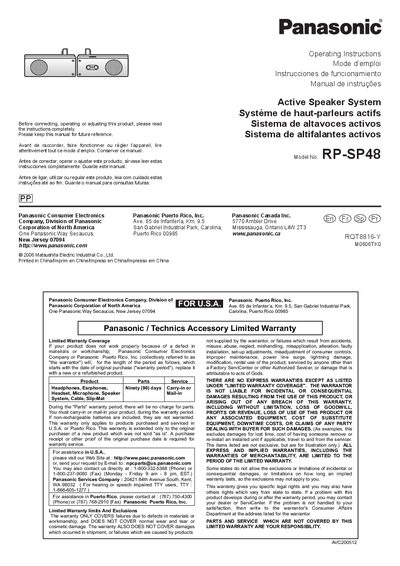

This is a Panasonic RP-SP48 speaker system operating manual.
This manual provides operating instructions for the Panasonic RP-SP48 Active Speaker System. It details the names of parts, installation procedures, and methods for using the unit with batteries or an AC adapter. The document includes safety warnings and specific usage guidelines to prevent damage to the equipment.
| Speaker unit | 40 mm (1-9/16 in.) full range |
|---|---|
| Impedance | 4 Ω |
| Frequency range | 140 Hz - 20 kHz (at –16 dB) |
| Output power | 2 W + 2 W (10% THD, 1 kHz) |
| Power requirements | DC 6 V, 4 batteries (R03/LR03, AAA) or AC adaptor (6 V, 1.25 A) |
| Approximate play times | 60 hours (alkaline batteries) |
| Cord length | 0.5 m (1.6 ft.) |
| Dimensions (W × H × D) | 140 mm × 56 mm × 30 mm (without stand) |
Replace with new batteries when the [OPR] indicator starts to fade and/or flash, or when sound becomes distorted or fades.
You must use a DC 6 V (1.25 A) AC adaptor; using one with lower capacity may cause failure.
The power source switches over to AC power, and the unit enters the standby condition.
