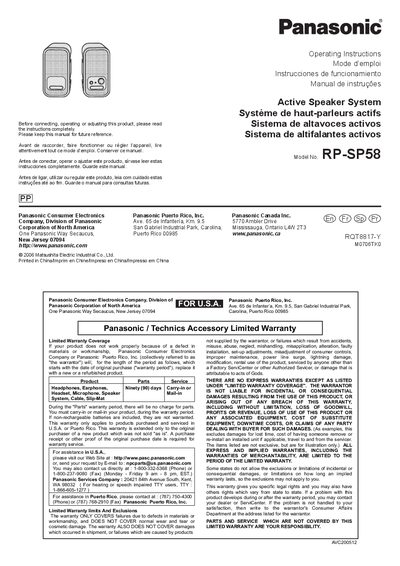

This manual provides instructions on how to connect, operate and adjust the Panasonic RP-SP58 Active Speaker System.
This document provides operating instructions for the Panasonic RP-S P58 Active Speaker System. It details the supplied accessories, part names, and step-by-step procedures for connecting the AC adaptor and audio input to operate the left and right speakers.
The manual includes technical specifications such as output power (5W+5W), frequency range (50 Hz - 20 kHz), and physical dimensions. It also outlines the limited warranty coverage provided by Panasonic Consumer Electronics Company.
| Speaker unit size | 57 mm (2-1/4 in.) full range |
|---|---|
| Impedance | 8 ohms |
| Frequency range | 50 Hz - 20 kHz (at-16 dB) |
| Output power | 5 W+5W (10% THD, 1 kHz) |
| Power requirement | AC adaptor (12.5 V, 1A) |
| Audio input plug type | L-type 3.5 mm (1/8 in.) stereo |
The system provides an output power of 5 W+5W at 10% THD and 1 kHz.
The unit requires an AC adaptor with a rating of 12.5 V and 1A.
The cord length for the unit is 1 meter (3.3 ft.).
