RQ-CR18V is a portable radio produced by Panasonic. It can receive AM and FM broadcasts and play tapes.

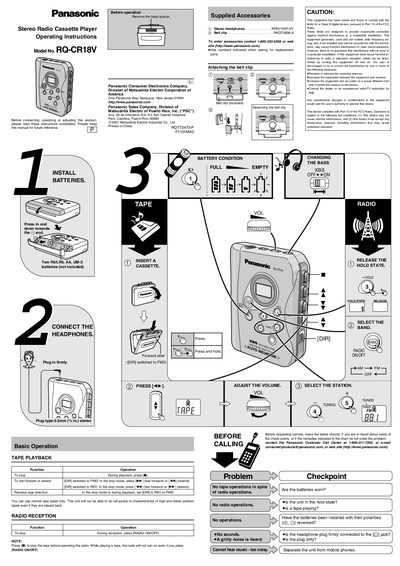

This document provides operating instructions for the Panasonic RQ-CR18V Stereo Radio Cassette Player. It details how to install batteries, connect headphones, and perform basic functions such as tape playback, fast forward/rewind, and radio reception on AM and FM bands.
The manual also includes troubleshooting guides for common issues like no sound or poor reception, maintenance tips for cleaning the unit and heads, safety precautions regarding battery usage and listening habits, and a list of technical specifications including frequency ranges and dimensions.
| FM Frequency Range (Standard) | 87.9-107.9 MHz (0.2 MHz steps) |
|---|---|
| AM Frequency Range | 520-1710 kHz (10 kHz steps) |
| Tape Speed | 4.8 cm/s (1% ips) |
| Output Jack Impedance | 240 ohms |
| Power Requirement | DC 3 V (two R6/LR6, AA, UM-3 batteries) |
| Dimensions | 151 x 112.0 x 29.2 mm |
The unit requires two R6/LR6, AA, or UM-3 batteries.
Press the [I] button during playback to stop.
Ensure the headphone plug is firmly connected to the jack.
