This document is an instruction manual for Panasonic consumer electronics products, providing information on basic operations and features. The products include a radio and tape player, and come with accessories such as stereo headphones and a belt clip.

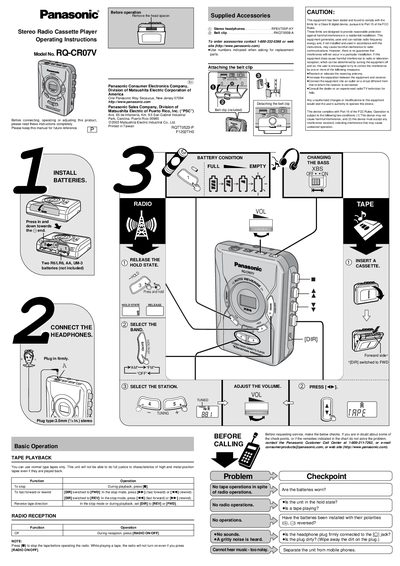

This document provides operating instructions for the Panasonic RQ-CR07V stereo radio cassette player. It details how to install batteries, connect headphones, and perform basic operations such as tape playback and radio reception. The manual explains features like auto-reverse, preset tuning for up to 10 stations, and the hold function.
| Frequency range (FM) | 87.9-107.9 MHz (0.2 MHz steps) |
|---|---|
| Frequency range (AM) | 520-1710 kHz (10 kHz steps) |
| Tape speed | 4.8 cm/s (174 ips) |
| Output jack | 3.5mm stereo |
| Power requirement | DC 3 V (two R6/LR6, AA, UM-3 batteries) |
| Dimensions | 84.8 x 112.0 x 32.8 mm |
| Mass | 156 g (5.5 oz) |
| Play time (Tape) | About 25 hours |
| Play time (Radio) | About 42 hours |
Frequencies of up to 10 radio stations (5 each for AM and FM) can be stored in memory.
Yes, you can use normal type tapes only; the unit will not be able to do full justice to characteristics of high and metal position tapes.
