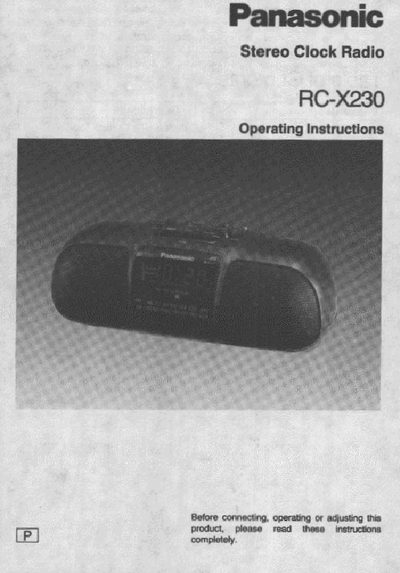

This document provides operating instructions for the Panasonic RC-X230 Stereo Clock Radio. It details safety precautions, installation steps including battery replacement, and explains how to use various features such as dual wake-up alarms, a radio sleep timer, and surround sound effects.
The guide also covers basic operations like setting the correct time, tuning FM and AM broadcasts, adjusting volume and tone, and connecting external audio devices. It includes troubleshooting tips for power interruptions and specifies technical details regarding dimensions, weight, and electrical requirements.
| Frequency Range (FM) | 88-108 MHz |
|---|---|
| Frequency Range (AM) | 525~1710 kHz |
| Power Requirement | AC; 120V, 60Hz |
| Power consumption | 10W |
| Battery type | 9V (6F22/006P) |
| Speakers | Bem (3")x2 |
| Dimensions (WxHxD) | 311x108x143 mm |
| Weight | 1.4 kg (3 Ib. 1 02.) without battery |
The back-up battery will be exhausted after about 23 hours of total accumulative use.
The clock display disappears, but the alarm time is preserved. If the wake-up time does not resume power, the radio alarm will not activate.
You should replace the battery with a new one after one year of use.
