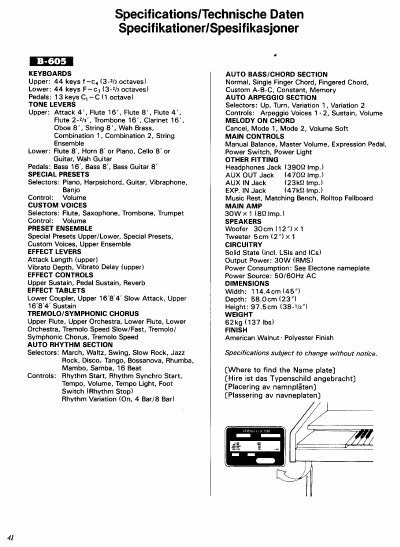

This document provides a comprehensive list of specifications for the Yamaha B-605 Electone. It details the layout of the upper and lower keyboards, including specific key ranges and octave counts. The sheet also lists available tone levers, effect controls, and preset ensembles such as Piano, Harpsichord, and Guitar.
| Upper Keyboard Range | 44 keys f~c, (3-2/3 octaves) |
|---|---|
| Lower Keyboard Range | 44 keys F~c3 (3-2/3 octaves) |
| Output Power | 30W (RMS) |
| Width | 114.4cm (45") |
| Weight | 62kg (137 lbs) |
The unit measures 114.4cm (45") wide, 58.0cm (23") deep, and 97.5cm (38-1/2") high.
The output power is 30W (RMS) and power consumption details are found on the nameplate.
The instrument features an American Walnut finish with a Polyester coating.
