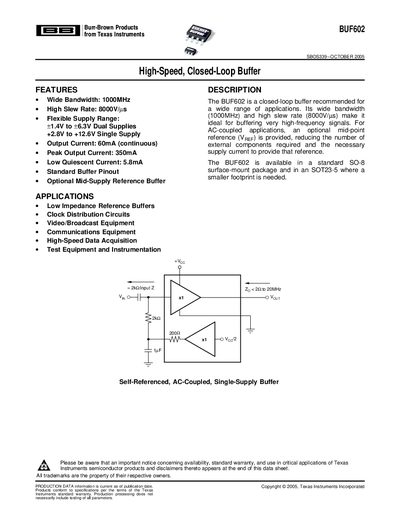

BUF602 is a closed-loop buffer from Texas Instruments. It features a wide bandwidth of 1000MHz, high output current and low static current. It is suitable for many applications such as clock distribution circuits, video/broadcast equipment, communication equipment, high-speed data acquisition equipment, etc.
The BUF602 is a closed-loop buffer designed for applications requiring wide bandwidth and high slew rates, such as clock distribution circuits, video equipment, and high-speed data acquisition. It features an optional mid-supply reference to reduce external components in AC-coupled single-supply configurations.
Available in SO-8 and SOT23-5 packages, the device supports supply voltages from +1.4V to +6.3V (dual) or +2.8V to +12.6V (single). Key electrical characteristics include a continuous output current of 60mA, low quiescent current of 5.8mA, and operation over a temperature range of -45°C to +85°C.
| Bandwidth (Vo = 500mVpp) | 1000 MHz min |
|---|---|
| Slew Rate | 8000 V/µs min |
| Output Current (Continuous) | 60 mA min |
| Quiescent Current | 5.8 mA max |
| Operating Temperature Range | -45°C to +85°C |
The minimum operating voltage for dual supplies is +1.4V.
Yes, an optional mid-point reference (Vper) is provided for AC-coupled applications.
