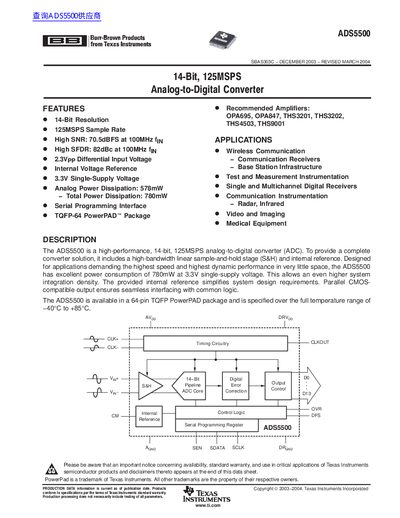

The ADS5500 is a 14-bit, 125MSPS high-performance analog-to-digital converter (ADC) that includes a high-bandwidth linear sample-and-hold stage (S&H) and internal reference. The ADS5500 has excellent power consumption of 780mW at 3.3V single-supply voltage.
The ADS5500 is a high-performance, 14-bit, 125MSPS analog-to-digital converter (ADC) manufactured by Texas Instruments. It includes a high-bandwidth linear sample-and-hold stage and an internal voltage reference to simplify system design. The device is designed for applications requiring high speed and dynamic performance in a small footprint, such as wireless communication, radar, and test and measurement instrumentation.
| Resolution | 14 Bits |
|---|---|
| Sample Rate | 125 MSPS |
| Signal-to-Noise Ratio (SNR) | 70.5 dBFS |
| Spurious-Free Dynamic Range (SFDR) | 82 dBc |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | TQFP-64 PowerPAD |
The maximum sample rate is 125 MSPS.
Yes, it includes an internal reference to simplify system design requirements.
The recommended operating temperature range is -40°C to +85°C.
