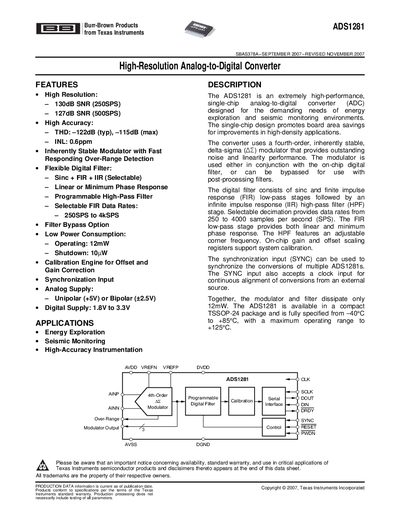

The ADS1281 is an extremely high-performance, single-chip analog-to-digital converter (ADC) designed for the demanding needs of energy exploration and seismic monitoring environments. It features 130dB signal-to-noise ratio (SNR) (250SPS) and 127dB SNR (500SPS), as well as 0.6ppm input offset error (INL).
The ADS1281 is a single‑chip, high‑performance analog‑to‑digital converter designed for energy‑exploration and seismic‑monitoring applications. It features a fourth‑order delta‑sigma modulator, on‑chip digital filtering (sinc, FIR, IIR), and a synchronization input for multi‑device operation.
The device operates from either a unipolar (+5 V) or bipolar (+2.5 V) analog supply, consumes 12 mW in normal mode, and is offered in a compact TSSOP‑24 package. Detailed electrical characteristics, timing diagrams, and mechanical data are provided throughout the sheet.
| Resolution | 31 bits |
|---|---|
| Signal‑to‑Noise Ratio (SNR) | 130 dB at 250 SPS, 127 dB at 500 SPS |
| Total Harmonic Distortion (THD) | -122 dB typ, -115 dB max |
| Integral Nonlinearity (INL) | 0.6 ppm |
| Power Consumption | 12 mW operating, 10 mW shutdown |
| Analog Supply Voltage | Unipolar +5 V or Bipolar +2.5 V |
| Package | TSSOP‑24 |
| Maximum Sampling Rate | 4 kSPS selectable |
The device supports selectable data rates up to 4 kSPS.
It is offered in a compact TSSOP‑24 surface‑mount package.
The SYNC input synchronizes the conversions of multiple ADS1281 devices and can also accept a clock input for continuous alignment.
