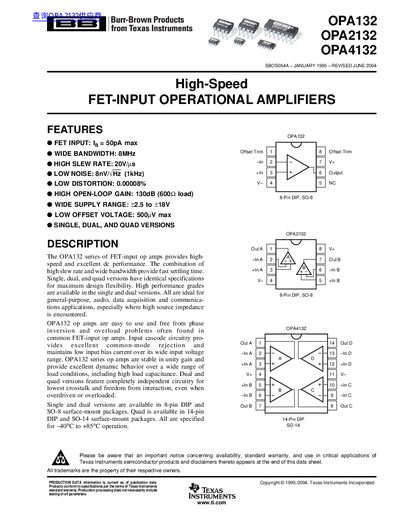

The document describes the features and characteristics of the OPA132 series of FET-input operational amplifiers, including low noise, low distortion, high open-loop gain, etc. These products have wide bandwidth, high slew rate, and low offset voltage, making them suitable for general-purpose, audio, data acquisition, and communication applications.
This document describes the OPA132 series of FET-input operational amplifiers, which provide high speed and excellent DC performance. The series includes single, dual, and quad versions with identical specifications for design flexibility, making them ideal for general-purpose, audio, data acquisition, and communications applications.
| Bandwidth | 8MHz |
|---|---|
| Noise Density | 8nV/VHz (1kHz) |
| Total Harmonic Distortion | 0.00008% |
| Open-Loop Gain | 130dB |
| Supply Voltage Range | +2.5 to +18V |
| Offset Voltage | 500uV max |
The devices are specified for operation from -40°C to +85°C.
The maximum input offset voltage is 500 microvolts.
The specified operating voltage range starts at +2.5V.
