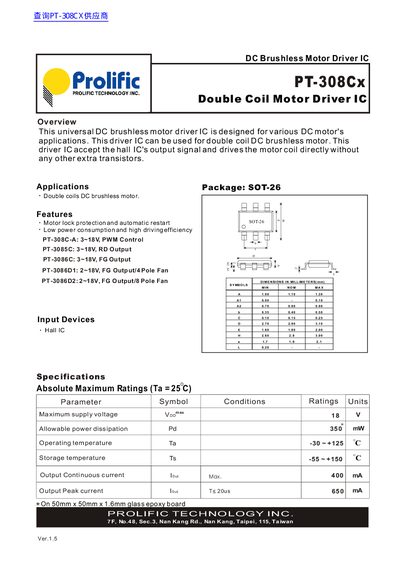

PT-308Cx is a DC brushless motor driver IC produced by Prolific Technology. It is used for double coil DC brushless motors. This driver IC can accept the hall IC's output signal and drive the motor coil directly without any other external transistors.
The Prolific PT-308Cx is a universal DC brushless motor driver IC specifically designed for various applications involving double coil DC brushless motors. It accepts the output signal from a Hall IC and drives the motor coils directly without requiring any extra transistors, simplifying circuit design.
Key features of this device include motor lock protection with automatic restart functionality and low power consumption combined with high driving efficiency. The component is available in an SOT-26 package.
| Allowable Power Dissipation | 350 mW |
|---|---|
| Operating Temperature Range | -30~+125 C |
| Output Continuous Current | 400 mA |
| Output Peak Current | 650 mA |
This driver IC is designed for double coil DC brushless motors.
The maximum supply voltage is 18 V.
The maximum continuous output current is 400 mA.
