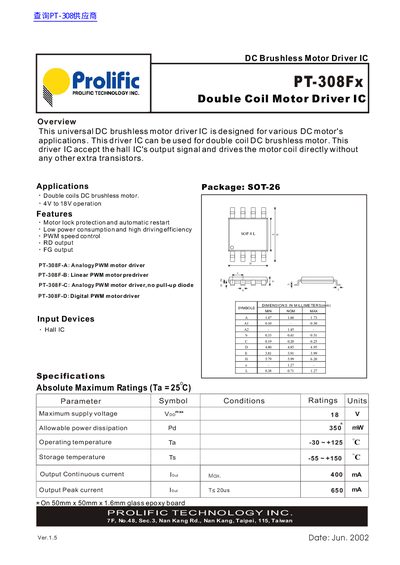

PT-308Fx is a DC brushless motor driver IC designed for various DC motor's applications. This driver IC can be used for double coil DC brushless motor. This driver IC accept the hall IC's output signal and drives the motor coil directly without any other extra transistors.
The Prolific PT-308Fx is a universal DC brushless motor driver IC designed specifically for various applications involving double coil DC brushless motors. It accepts Hall IC output signals and drives the motor coils directly without requiring extra transistors.
Key features include motor lock protection with automatic restart, low power consumption, high driving efficiency, PWM speed control, RD output, and FG output. The device supports operation voltages from 4V to 18V.
| Operating voltage range | 4V to 18V |
|---|---|
| Maximum supply voltage | 18 V |
| Allowable power dissipation | 350 mW |
| Operating temperature range | -30 to +125 C |
| Storage temperature range | -55 to +150 C |
| Output continuous current | 400 mA |
| Output peak current | 650 mA |
It is designed for double coil DC brushless motors.
No, it drives the motor coil directly without any other extra transistors.
