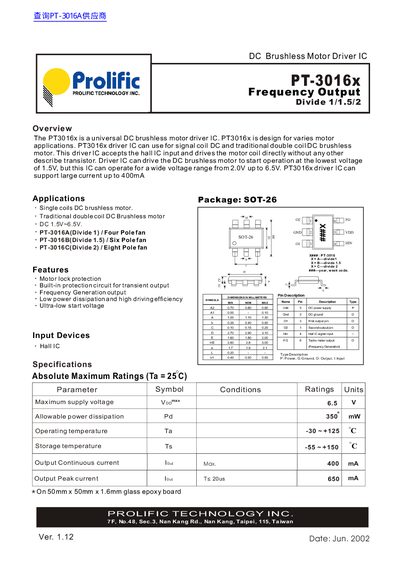

PT-3016x series is a DC brushless motor driver IC produced by Prolific Technology Inc. It has frequency output function and is suitable for single coil DC brushless motor. The chip has motor lock protection function and built-in transient output protection circuit. The output frequency can reach 6.5V, the power consumption is low, the driving efficiency is high, and the starting voltage is low.
The PT-3016x is a universal DC brushless motor driver IC designed for various motor applications, including single coil and traditional double coil motors. It accepts Hall IC input and drives the motor coil directly without requiring additional transistors.
This device supports a wide operating voltage range from 2.0V to 6.5V and can drive large currents up to 400mA continuously. Key features include system wake-up code, motor lock protection, built-in transient output protection, frequency generation output, and ultra-low start voltage.
| Operating Voltage Range | 2.0V to 6.5V |
|---|---|
| Output Continuous Current | 400mA |
| Operating Temperature Range | -30 to +125 C |
| Storage Temperature Range | -55 to +150 C |
The driver IC can support operation at a lowest voltage of 1.5V.
No, it drives the motor coil directly without any other describe transistor.
