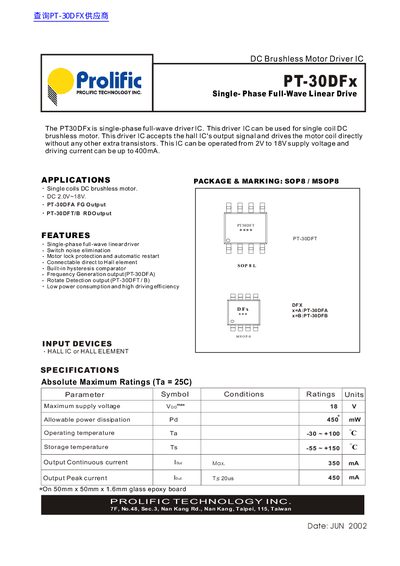

The PT-30DFx is a single-phase full-wave driver IC that can be used for single-coil DC brushless motors. This driver IC accepts the output signal from the hall IC and drives the motor coil directly without the need for any additional transistors. This IC can operate from a supply voltage of 2V to 18V, and the driving current can be up to 400mA.
The PT-30DFx is a single-phase full-wave driver IC designed to drive single coil DC brushless motors directly from Hall element outputs without requiring extra transistors. It accepts input signals from Hall ICs or Hall elements and operates with a supply voltage range of 2V to 18V.
| Supply Voltage Range | 2V to 18V |
|---|---|
| Allowable Power Dissipation | 450 mW |
| Operating Temperature Range | -30 ~ +100 C |
| Storage Temperature Range | -55 ~ +150 C |
The IC can be operated from a supply voltage up to 18V.
The output continuous current is rated at a maximum of 350mA.
The allowable power dissipation is 450mW.
