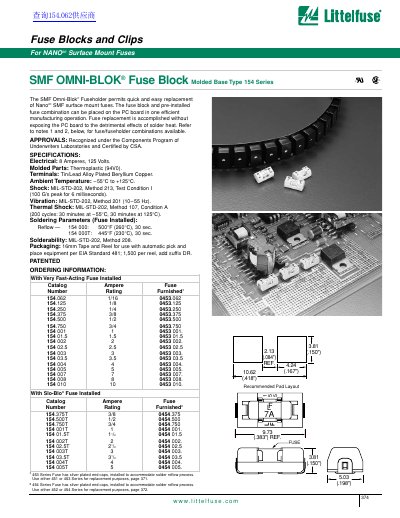

Littelfuse 154 Series SMF Omni-Blok Fuse Block Molded Base Type Datasheet

This document describes the features and characteristics of NANO2® surface mount fuses, fuse blocks, and clips.

Brand: Littelfuse
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 106 KB
Published: 04 May, 2012
Updated: 29 September, 2023
MD5 checksum: 7C1FE4CD0105C94BFB7EF9F33CFEBF45
PDF: Littelfuse 154 Series SMF Omni-Blok Fuse Block Molded Base Type Datasheet PDF

About this manual

The SMF Omni‑Blok® Fuse Block Molded Base Type 154 Series offers a quick‑replaceable surface‑mount fuse solution for PCBs. The block and pre‑installed fuse can be placed in a single manufacturing step, eliminating solder‑heat exposure during replacement.

The product is UL and CSA approved, meets MIL‑STD‑202 shock, vibration and thermal‑shock requirements, and is supplied on 16 mm tape and reel for automated pick‑and‑place equipment. Electrical rating is 8 A at 125 V, with a thermoplastic (94V0) body and tin/lead alloy plated beryllium‑copper terminals.

What's inside

Catalog
Fuse Number Rating
Approvals
Specifications
Packaging
Patented Ordering Information
Recommended Pad Layout

Specifications

Electrical rating	8 A, 125 V
Molded material	Thermoplastic (94V0)
Terminals	Tin/Lead alloy plated beryllium copper
Operating temperature range	-55 °C to +125 °C

Frequently asked questions

What are the electrical ratings of the 154 Series fuse block?

It is rated for 8 amperes at 125 volts.

What temperature range can the fuse block operate in?

It can operate from –55 °C up to +125 °C.

Download PDF (106 KB)
