This is a SP6T RF switch produced by Peregrine Semiconductor. It supports 2.75V voltage and can work in the 100-3000MHz frequency range. The switch uses HaRP™ technology to provide high linearity and excellent harmonic performance.

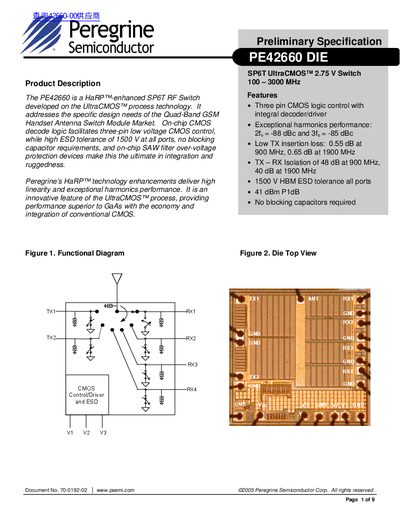

The document provides preliminary specifications for the PE42660, a HaRP-enhanced SP6T RF switch developed on UltraCMOS process technology. It is designed for the Quad-Band GSM Handset Antenna Switch Module market, featuring three-pin CMOS logic control and high ESD tolerance.
| Operational Frequency | 100 - 3000 MHz |
|---|---|
| Insertion Loss (ANT - TX) | 0.55 dB @ 850/900 MHz |
| Insertion Loss (ANT - TX) | 0.65 dB @ 1800/1900 MHz |
| TX - RX Isolation | 48 dB @ 850/900 MHz |
| TX - RX Isolation | 40 dB @ 1800/1900 MHz |
| ESD Tolerance (HBM) | 1500 V |
| Supply Voltage | 2.65 V to 2.85 V |
| Temperature Range | -40 to +85 °C |
| Die Size | 1.146 x 1.106 mm |
| Wafer Size | 150 mm |
The device operates from 100 MHz to 3000 MHz.
Epoxy die attach adhesive is recommended because the substrate is sapphire.
They must be handled using a vacuum wand with a non-metallic ESD protected tip, not tweezers.
