The PE42672 is a HaRP-enhanced SP7T RF Switch developed on the UltraCMOS process technology. It addresses the specific design needs of the Quad-Band GSM Handset Antenna Switch Module Market for use in GSM/EDGE/PCS/DCS/WCDMA handsets. The switch is comprised of three TX ports and four RX ports. TX1 is designed for WCDMA and TX2 and TX3 are designed for GSM/ EDGE. The four symmetric RX ports can be used for GSM/EDGE/PCS RX. On-chip CMOS decoder logic facilitates three-pin low voltage CMOS control, while high ESD tolerance of 1500 V at all ports, no blocking capacitor requirements, and on-chip SAW filter over-voltage protection devices make this the ultimate in integration and ruggedness. Peregrine's HaRP technology enhancements deliver high linearity and exceptional harmonics performance. It is an innovative feature of the UltraCMOS process, providing performance superior to GaAs with the economy and integration of conventional CMOS.

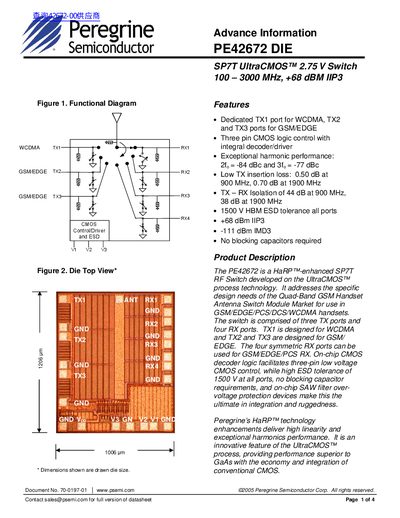

The document provides advance information for the PE42672, a HaRP-enhanced SP7T RF switch developed on UltraCMOS process technology. It is specifically targeted at the Quad-Band GSM Handset Antenna Switch Module market for use in GSM/EDGE/PCS/DCS/WCDMA handsets.
The device features three TX ports (one dedicated to WCDMA, two for GSM/EDGE) and four symmetric RX ports. Key specifications include low insertion loss, high isolation between transmit and receive paths, and exceptional harmonic performance with no blocking capacitors required.
| Supply Voltage | 2.75 V (Typ) |
|---|---|
| Operating Temperature Range | -40 to +85 °C |
| ESD Tolerance (HBM) | 1500 V |
| TX Insertion Loss @ 900 MHz | 0.50 dB |
It addresses the specific design needs of the Quad-Band GSM Handset Antenna Switch Module Market.
No, no blocking capacitors are required for operation.
