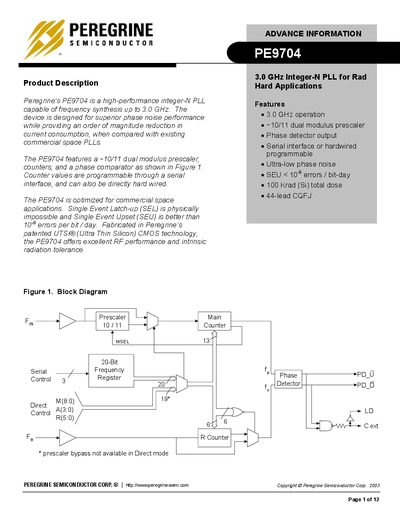

The PE9704 is a high-performance integer-N PLL capable of frequency synthesis up to 3.0 GHz.
The Peregrine Semiconductor PE9704 is a high-performance integer-N Phase Locked Loop (PLL) capable of frequency synthesis up to 3.0 GHz. It features superior phase noise performance and an order of magnitude reduction in current consumption compared to existing commercial space PLLs.
Designed for commercial space applications, the device utilizes Peregrine's patented UTSi® CMOS technology to ensure excellent RF performance and intrinsic radiation tolerance. Key specifications include a Single Event Upset (SEU) rate of less than 10 errors per bit-day and a total ionizing dose rating of 100 Krad (Si).
| Maximum Operating Frequency | 3.0 GHz |
|---|---|
| Supply Voltage Range | 2.85 V to 3.15 V |
| Operating Temperature Range | -40°C to +85°C |
| Total Ionizing Dose Rating | 100 Krad (Si) |
| Single Event Upset Rate | < 10 errors / bit-day |
| Package Type | 44-lead CQFJ |
The device supports operation up to 3.0 GHz.
Yes, it is optimized for commercial space applications with intrinsic radiation tolerance.
It offers a SEU rate of less than 10 errors per bit-day.
