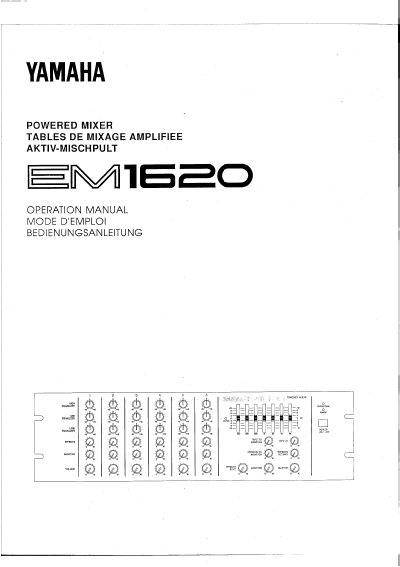

The Yamaha EM1620 is a powered mixer designed for musical instruments and small to midsize PA applications. It features six input channels with three-band equalization, a built-in 200-watt amplifier into 4-ohm loads, and an internal limiter circuit. The unit supports XLR or phone jack connectors on inputs and includes a master seven-band graphic equalizer.
| Amplifier Power | 200 watts into 4 ohm loads |
|---|---|
| Number of Input Channels | Six input channels |
| Channel Equalization | Three-band equalization per channel |
| Master Equalizer | Seven-band graphic equalizer |
| High Control Frequency | 10 kHz Shelving |
| Mid Control Frequency | 2 kHz Peaking |
| Low Control Frequency | 100 Hz Shelving |
The seven-band graphic equalizer provides 12 dB of boost or cut in each band.
The controls operate at ISO center frequencies of 125, 250, 500, 1k, 2k, 4k, and 8k Hz.
Yes, a Phantom Master switch is included to supply +48 V when needed.
