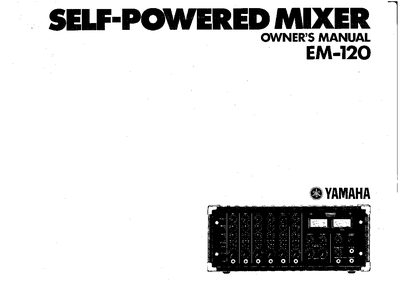

The Yamaha EM-120 is a six-input, stereo-output self-powered mixer featuring a built-in 100-watt amplifier. It includes individual volume, equalizer, and reverb/echo controls for each channel, along with auxiliary inputs and phono support. The unit is designed for recording, sub-mixing, or use in PA systems.
| Inputs | 6 INPUT channels, 1 PHONO stereo input (L & R) and 3 auxiliary monaural inputs. |
|---|---|
| Power Output | 100 Watts (2x50W) into any 8-ohm speaker system. |
| Equalization | LOW and HIGH-EQ controls at 100Hz and 10KHz. |
| Reverb Type | Accutronics spring-type reverberation unit. |
The -50dB setting on the INPUT LEVEL SELECTOR SWITCHES is generally used with low output dynamic microphones.
The unit delivers up to 50 Watts RMS per channel, totaling 100 Watts, into an 8-ohm minimum speaker load.
No audio passes through the mixer when power is off.
