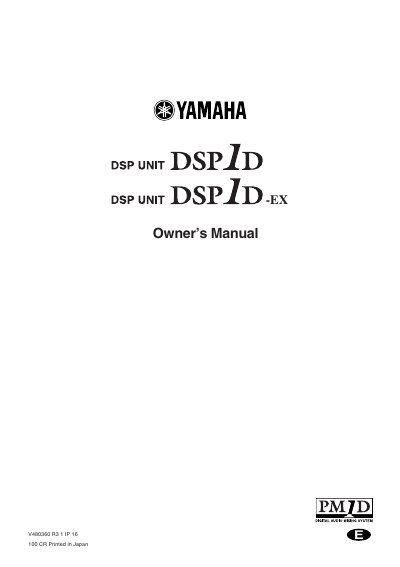

Yamaha DSP1D/DSP1D-EX DSP Unit Owner's Manual

About this manual

This manual is for the Yamaha DSP1D and DSP1D-EX DSP units, which are specifically designed for the Yamaha PM1D digital audio mixing system. The unit is controlled by the CS1D control surface, and installation and setup should be performed by an authorized Yamaha service engineer.

What's inside

• FCC INFORMATION
• Precautions
• Operating Notes
• Rack Mounting Caution
• Front panel
• Rear panel

Frequently asked questions

What is the DSP1D/DSP1D-EX designed for?

It is specifically designed for the Yamaha PM1D digital audio mixing system and is controlled by the CS1D control surface.

What is the minimum time required between turning the power on and off?

You must allow at least five seconds to elapse between power-on and power-off to prevent damage.

How much free space is required behind the unit when rack-mounted?

When rack-mounting the unit, you must allow 10 cm of free space behind it for normal ventilation.
