GS9025A is a high-performance serial digital signal clock and data recovery chip that supports SMPTE 259M and other data standards, and has automatic cable equalization, automatic rate selection, signal strength indicator output and other functions.

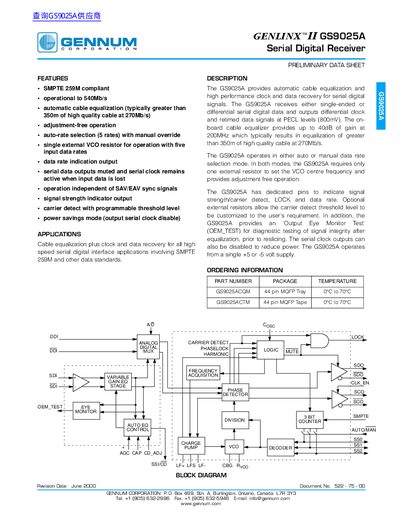

The Gennum GS9025A is a Serial Digital Receiver designed for high-speed applications involving SMPTE 259M and other data standards. It provides automatic cable equalization with up to 40dB of gain at 200MHz, enabling operation over cables greater than 350m in length. The device features adjustment-free operation with auto-rate selection for five input data rates ranging from 143Mb/s to 540Mb/s.
| Serial Data Rate | 143 to 540 Mb/s |
|---|---|
| Maximum Equalizer Gain @ 200MHz | - 40 dB |
| Operating Temperature Range | 0°C to 70°C |
| Supply Voltage | +5 or -5 volt |
The device supports operation up to 540Mb/s.
The device is operational up to a data rate of 540Mb/s.
The on-board equalizer typically supports greater than 350m of high quality cable at 270Mb/s.
The absolute maximum supply voltage rating is 5.5V.
