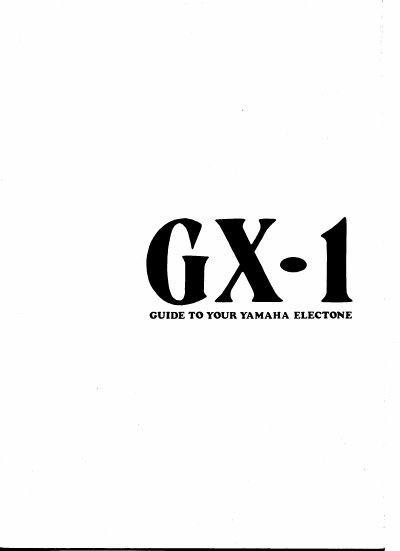

The Yamaha GX-1 is an electronic organ designed to produce a natural, living sound through advanced technology. This manual details how to mount the self-contained pedal board and adjust the seat for optimal playing position.
The guide provides instructions on connecting various Tone Cabinet models (one, two, or three units) using specific terminals and switches. It also explains the operation of the high-quality speaker system (Model TX-II), tone generators, keyboards, and exclusive features such as the Auto Rhythm Section and Knee Control.
| Upper Manual Keys | 61 keys C ~ c4 |
|---|---|
| Lower Manual Keys | 61 keys C ~ c4 |
| Pedal Keys | 25 keys Ci ~ c |
| Solo Manual Keys | 37 keys ct ~ c4 |
| Power Consumption | 420W |
Sit lightly on the seat and lift the handle under the seat plank to move it up; putting more weight while holding the handle lowers it.
You must connect the Upper and Lower terminals to Tone Cabinet sockets and set the Multiple Units Switch at "2".
