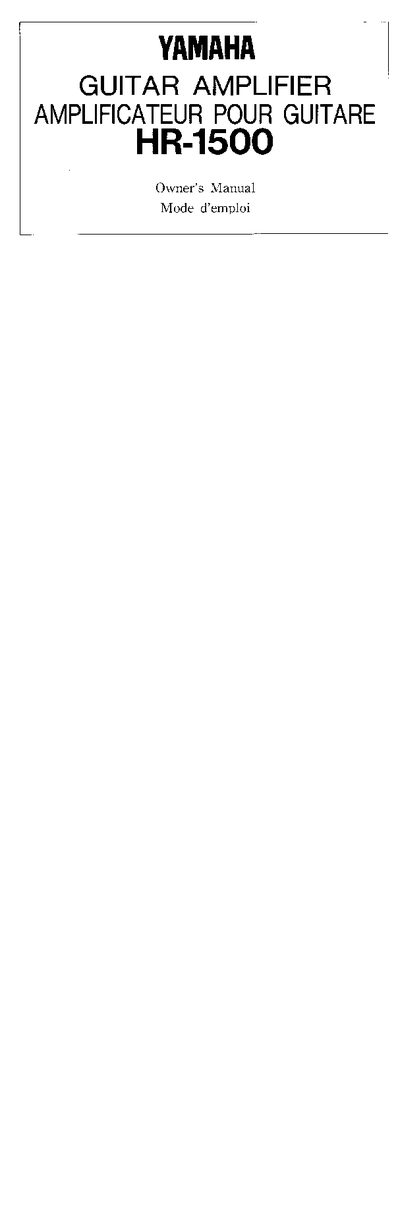

This document is the owner's manual for the Yamaha HR-1500, a high-performance guitar amplifier featuring built-in chorus effects. It provides essential safety precautions regarding power connection and handling to ensure safe operation and longevity of the unit.
The guide details the functions of the control panel, including instructions for adjusting GAIN, VOLUME, MASTER VOLUME, EQ controls (Bass, Middle, Treble, Presence), and the Chorus switch. It also lists technical specifications such as output power, speaker size, input sensitivity, and power requirements.
| Output Power | 15W r.m.s. (4 ohms, T.H.D. 10%) |
|---|---|
| Speaker Size | 20 cm |
| Input Jack Type | INPUT (HIGH GAIN) |
| Noise Level (Gain max) | 17 dB |
| Power Consumption (US/Canada) | 31W |
| Dimensions | 366 x 394 x 170 mm |
| Weight | 6.1 kg |
Use the GAIN and VOLUME controls; turning GAIN toward '10' increases distortion.
There will be no sound output from the amplifier.
Yes, a set of stereo headphones can be connected to the STEREO PHONES jack for private practice.
