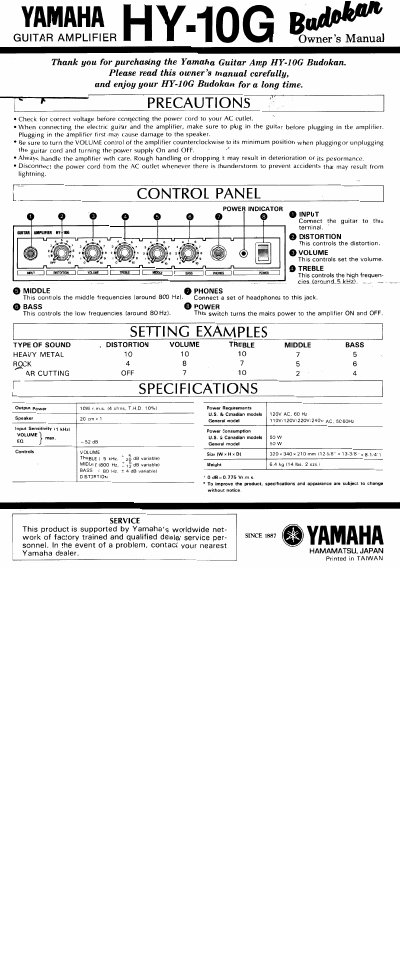

This document is the owner's manual for the Yamaha HY-10G Budokan guitar amplifier. It provides essential safety precautions, such as checking voltage and proper connection order to prevent speaker damage. The guide details the functions of the control panel, including the Distortion, Volume, Treble, Middle, and Bass controls, as well as the headphone jack and power switch.
| Output Power | 10W rms. (4 ohms, T.H.D. 10%) |
|---|---|
| Speaker Size | 20 cm |
| Power Requirements (US/Canada) | 120V AC, 60 Hz |
| Power Consumption (US/Canada) | 50 W |
| Dimensions | 320 x 340x 210 mm |
| Weight | 6.4 kg |
| Treble Control Range | 5 kHz, 20 dB variable |
| Middle Control Range | 800 Hz, 3 dB variable |
| Bass Control Range | 80 Hz, 4 dB variable |
Make sure to plug in the guitar before plugging in the amplifier to prevent damage to the speaker.
Turn the VOLUME control counterclockwise to its minimum position.
The output power is 10W rms at 4 ohms with 10% T.H.D.
