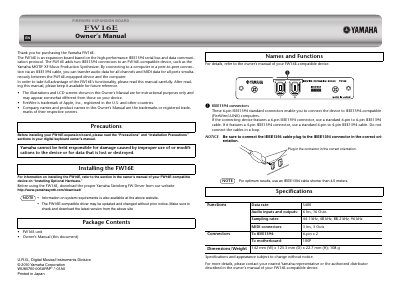

Yamaha FW16E FireWire Expansion Board User Manual

This is a product manual for Yamaha FW16E expansion board

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: Japanese
Pages: 1
File format: PDF
File size: 335 KB
Published: 12 June, 2012
Updated: 30 September, 2023
Model: FW16E
MD5 checksum: D28036AAA3CCABEC60564F8C8966D9EC
PDF: Yamaha FW16E FireWire Expansion Board User Manual PDF

About this manual

The Yamaha FW16E is a high-performance IEEE 1394 (FireWire) expansion board designed for audio and MIDI data communication. It is compatible with devices such as the Yamaha MOTIF XF synthesizer and allows for simultaneous transmission of audio data and MIDI data across all channels and ports via a point-to-point connection.

To use the FW16E, users must first download and install the Yamaha Steinberg FW driver software from the official website. The manual details the installation process, including hardware setup and connection guidelines for the IEEE 1394 interface. This manual is written in Japanese.

What's inside

Installation
Specifications
IEEE 1394 Interface
Audio Input/Output
MIDI Interface
Driver Download

Specifications

Sample Rates	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
