This document describes the maximum ratings and electrical characteristics of single phase 1.5 amp bridge rectifiers, including the maximum peak reverse voltage, maximum RMS voltage, maximum DC blocking voltage, and maximum average forward rectified current. It also highlights the features of the product, such as reliable low cost construction and high surge current capability.

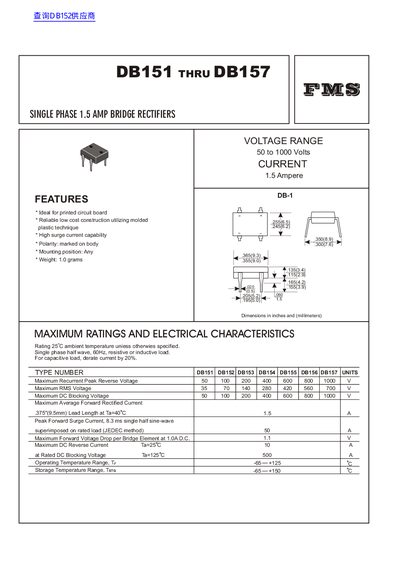

This document is a datasheet for FMS single phase 1.5 amp bridge rectifiers, covering models DB151 through DB157. It highlights features such as suitability for printed circuit boards, reliable low-cost construction using molded plastic, and high surge current capability. The polarity is marked on the body, and the mounting position is flexible.
| Current Rating | 1.5 Ampere |
|---|---|
| Voltage Range | 50 to 1000 Volts |
| Maximum Recurrent Peak Reverse Voltage | 50 to 1000 V |
| Maximum RMS Voltage | 35 to 700 V |
| Maximum Forward Voltage Drop | 1.1 V |
| Operating Temperature Range | -65 to +125 C |
| Storage Temperature Range | -65 to +150 C |
The current rating is 1.5 Ampere.
The voltage range is from 50 to 1000 Volts.
The maximum forward voltage drop is 1.1 V at 1.0A D.C.
