PMS SR520 thru SR5100 Schottky Barrier Rectifiers Datasheet

SR520 THRU SR5100 5.0 A Schottky Barrier Rectifiers are Schottky diodes used in power electronic devices. They have low voltage drop, high current capability, high reliability, and high surge current capability.

Brand: FMS
Category: RECTIFIER
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 34 KB
Published: 06 June, 2012
Updated: 30 September, 2023
MD5 checksum: 3273264F74CC53FC2611CF01E3802713

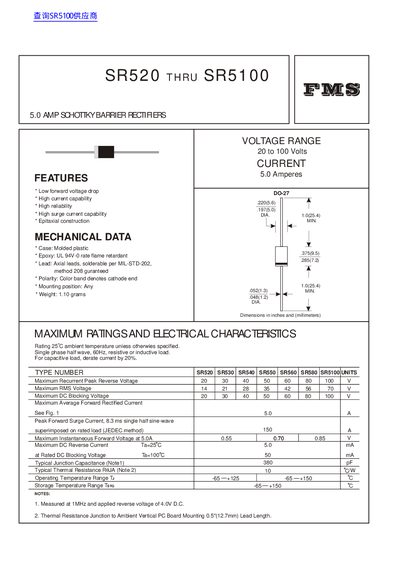

PDF: PMS SR520 thru SR5100 Schottky Barrier Rectifiers Datasheet PDF

About this manual

This document is a technical datasheet for the PMS SR520 through SR5100 series of 5.0 Amp Schottky Barrier Rectifiers. The devices feature epitaxial construction, low forward voltage drop, and high surge current capability. They are housed in DO-27 molded plastic cases with axial leads.

What's inside

Features
Mechanical Data
Voltage Range
Maximum Ratings
Electrical Characteristics
Derating Curves

Specifications

Peak Forward Surge Current	150 A
Operating Temperature Range	-65 to +125 °C
Typical Junction Capacitance	380 pF

Frequently asked questions

What is the current capability of these rectifiers?

The devices have a maximum average forward rectified current of 5.0 Amperes.

What is the maximum average forward rectified current for these rectifiers?

The maximum average forward rectified current is 5.0 Amperes.

What is the peak forward surge current rating?

The peak forward surge current is 150 Amperes.

What are the operating temperature limits for these devices?

The operating temperature range is from -65 to +125 degrees Celsius.
