This document provides the maximum ratings and electrical characteristics of 30.0 AMP SCHOTTKY BARRIER RECTIFIERS. It features low forward voltage drop, high current capability, high reliability, and high surge current capability.

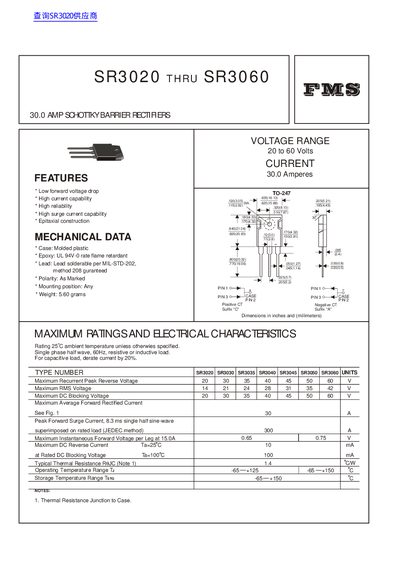

This document provides technical specifications for the FMS SR3020 through SR3060 series of Schottky barrier rectifiers. These devices are designed with epitaxial construction to offer a low forward voltage drop, high current capability, and high surge current capability suitable for various applications.
| Maximum Average Forward Rectified Current | 30 A |
|---|---|
| Peak Forward Surge Current | 300 A |
| Maximum DC Reverse Current at Rated DC Blocking Voltage Ta=25°C | 10 mA |
| Operating Temperature Range | -65 —+125 °C |
The devices cover a voltage range from 20 to 60 Volts.
The case is made of molded plastic with UL 94V-0 rate flame retardant epoxy.
