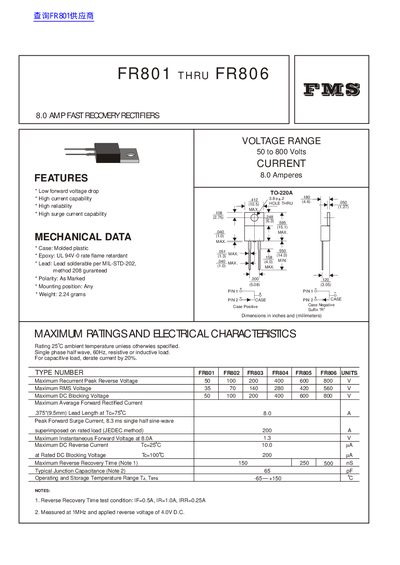

FR801-FR806 series is a 8A 200V fast recovery rectifier with low forward voltage drop, high current capability, high reliability and high surge current capability.
The FR801‑FR806 fast‑recovery rectifiers provide 8 A average forward current with low forward voltage drop and high surge current capability. They are offered in a molded‑plastic, UL‑94V‑0 flame‑retardant case and can be mounted in any position with polarity as marked.
Mechanical data include a lead length of 9.5 mm and a weight of 2.24 g. Electrical ratings cover a voltage range of 50‑800 V, maximum reverse recovery times of 150‑500 ns, and operating temperatures from –65 °C to +150 °C. Detailed characteristic curves and test circuit diagrams are provided for design reference.
| Maximum Recurrent Peak Reverse Voltage | 50‑800 V (model dependent) |
|---|---|
| Maximum RMS Voltage | 35‑560 V |
| Maximum DC Blocking Voltage | 50‑800 V |
| Maximum Average Forward Rectified Current | 8.0 A |
| Maximum Instantaneous Forward Voltage at 8.0 A | 1.3 V |
| Maximum DC Reverse Current (25 °C) | 10 µA |
| Maximum Reverse Recovery Time | 150‑500 ns |
| Typical Junction Capacitance | 65 pF |
| Operating Temperature Range | –65 °C to +150 °C |
The peak forward surge current is 200 A for an 8.3 ms single half‑sine wave surge (JEDEC method).
The case is molded plastic with UL‑94V‑0 epoxy flame‑retardant rating.
