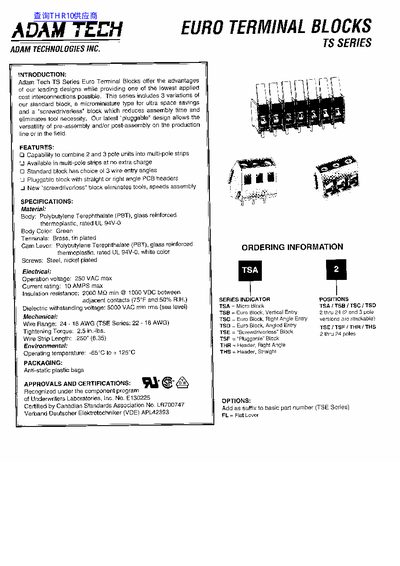

This document is a technical datasheet for the Adam Technologies TS Series of Euro terminal blocks. It describes various block variations including standard, microminiature, screwdriverless, and pluggable designs intended to reduce assembly time and save space.
The datasheet provides detailed electrical and mechanical specifications, such as operation voltage up to 250 VAC max and current ratings of 10 AMPS. It also includes ordering information for different series indicators (TSA through TSF) and header options.
| Operation voltage | 250 VAC max |
|---|---|
| Current rating | 10 AMPS max |
| Insulation resistance | 2000 MQ min @ 1000 VDC |
| Dielectric withstanding voltage | 5000 VAC min rms (sea level) |
| Wire Range | 24 - 16 AWG |
| Operating temperature | -65°C to + 125°C |
The maximum operation voltage is 250 VAC.
The maximum current rating is 10 AMPS.
