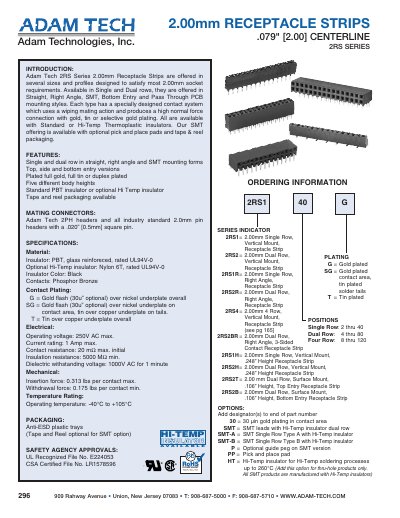

Adam Tech 2RS Series 2.00mm Receptacle Strips are offered in several sizes and profiles designed to satisfy most 2.00mm socket requirements. Available in Single and Dual rows, they are offered in Straight, Right Angle, SMT, Bottom Entry and Pass Through PCB mounting styles. Each type has a specially designed contact system which uses a wiping mating action and produces a high normal force connection with gold, tin or selective gold plating. All are available with Standard or Hi-Temp Thermoplastic insulators. Our SMT offering is available with optional pick and place pads and tape & reel packaging.
The Adam Technologies 2RS Series 2.00mm Receptacle Strips are offered in several sizes and profiles designed to satisfy most 2.00mm socket requirements. They are available in single and dual row configurations with straight, right angle, SMT, bottom entry, and pass-through PCB mounting styles.
| Operating voltage | 250V AC max. |
|---|---|
| Current rating | 1 Amp max. |
| Contact resistance | 20 mΩ max. initial |
| Insulation resistance | 5000 MΩ min. |
| Dielectric withstanding voltage | 1000V AC for 1 minute |
| Operating temperature | -40°C to +105°C |
The contacts are available with full gold, full tin, or duplex plated finishes.
Yes, tape and reel packaging is available for the SMT option.
