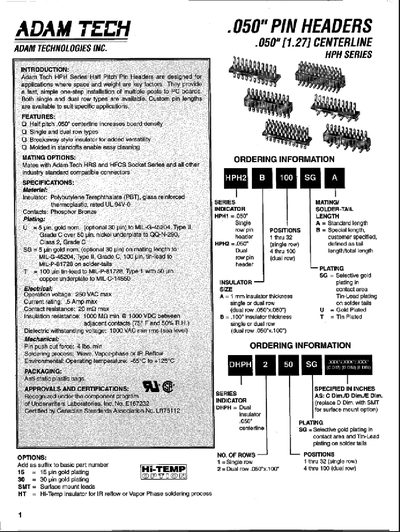

ADAM TECH .050'' [1.27] CENTERLINE HPH SERIES

Brand: ADAM
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 166 KB
Published: 08 May, 2012
Updated: 08 May, 2012
MD5 checksum: 7CD5BD131B44C92F16AED0F40473E081
PDF: ADAM TECH .050'' [1.27] CENTERLINE HPH SERIES PDF

About this manual

The .050" (1.27 mm) CENTERLINE HPH Series pin headers are designed for applications where space and weight are critical. They offer fast, simple one‑step installation of multiple posts to PC boards and are available in single‑ and dual‑row configurations.

Key specifications include a polybutylene terephthalate (PET) reinforced thermoplastic body, optional gold plating, 250 VDC maximum operating voltage, 1000 MΩ insulation resistance, and a minimum pin push‑out force of 4 lb. Ordering options cover various row types, pin counts, and plating selections, with packaging in antistatic plastic bags.

What's inside

Introduction
Features
Mating Options
Specifications
Packaging
Approvals and Certifications
Ordering Information
Pin Layout
Solder Pad Layout

Specifications

Pin pitch	.050" (1.27 mm) centerline
Row type	Single and dual row
Plating	Gold plating optional 30 µin
Operation voltage	250 VDC max
Insulation resistance	1000 MΩ min @ 1990 VDC
Pin push‑out force	4 lb min

Frequently asked questions

What row configurations are available for the .050" CENTERLINE HPH Series?

Both single and dual row types are available.

What is the maximum operating voltage for these pin headers?

The maximum operating voltage is 250 VDC.
