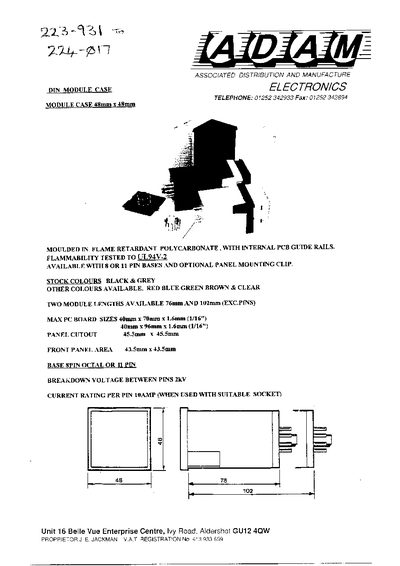

The DIN module case is a moulded flame‑retardant polycarbonate enclosure measuring 48 mm × 48 mm. It is available in stock colours black and grey, with optional red, blue, green, brown and clear finishes, and can be ordered with 8‑ or 11‑pin bases plus an optional panel‑mounting clip. Two module lengths (76 mm and 102 mm) are offered, supporting PCB sizes up to 40 mm × 70 mm (1.6 mm) or 40 mm × 96 mm (1.6 mm).
The case meets UL94V‑2 flammability standards and provides a breakdown voltage of 2 kV between pins. It is designed for use with suitable sockets, with a current rating per pin specified by the socket. Ordering information and the manufacturer’s contact details are included at the end of the sheet.
| Case dimensions | 48 mm × 48 mm |
|---|---|
| Flammability rating | UL94V‑2 |
| Pin bases | 8‑pin or 11‑pin |
| Stock colours | Black, Grey |
| Additional colours | Red, Blue, Green, Brown, Clear |
| Breakdown voltage between pins | 2 kV |
| Panel cutout size | 45.5 mm × 45.5 mm |
The stock colours are black and grey.
Red, blue, green, brown and clear are also available.
The case is tested to UL94V‑2 flammability rating.
The breakdown voltage between pins is 2 kV.
