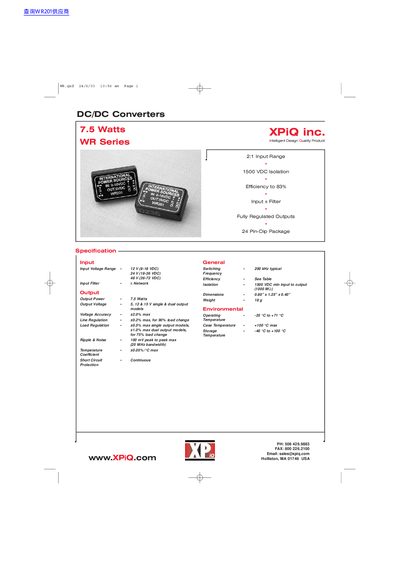

This document describes the features and characteristics of the WR series DC/DC converters, including 2:1 input range, 1500 VDC isolation, 83% efficiency, input π filter, fully regulated outputs, etc.
The XPiQ WR Series consists of intelligent design quality DC/DC converters delivering 7.5 Watts of power with a 2:1 input range. These units offer high voltage isolation of 1500 VDC and operate within an environmental temperature range of -40 °C to +100 °C.
| Power Output | 7.5 Watts |
|---|---|
| Isolation Voltage | 1500 VDC min input to output |
| Efficiency | up to 83% |
| Operating Temperature | -40 °C to +100 °C |
| Ripple & Noise | 100 mV peak to peak max |
The maximum output power is 7.5 Watts.
The minimum isolation voltage is 1500 VDC.
The maximum operating temperature is 104 °F.
