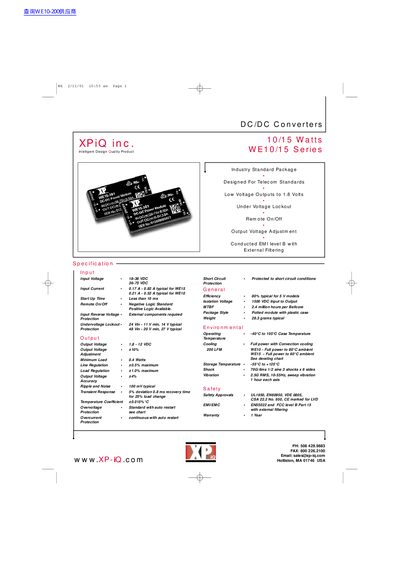

This is a specifications document for WEISS WE10/15 series power supplies
This document provides technical specifications for the XPiQ WE10 and WE15 Series of DC/DC converters. These units are designed to meet telecom industry standards, featuring low voltage outputs down to 1.8 Volts and conducted EMI level B compliance with external filtering.
The datasheet details electrical characteristics such as input voltage ranges (18-36 VDC or 36-75 VDC), efficiency ratings up to 80%, and various protection features including short circuit, overvoltage, and undervoltage lockout. It also includes a table of specific model part numbers with their output voltage and current ratings for both single and dual output configurations.
| Input Voltage Range (WE10) | 18-36 VDC |
|---|---|
| Input Voltage Range (WE15) | 36-75 VDC |
| Typical Efficiency | 80% |
| Isolation Voltage | 1500 VDC |
| Operating Temperature Range | -40°C to +105°C |
| Minimum Load Requirement | 0.4 Watts |
The typical efficiency for 5 V models is 80%.
The unit starts up in less than 10 ms.
A typical package weighs 28.3 grams.
