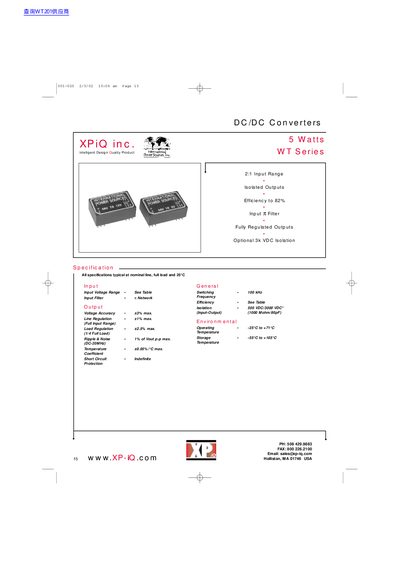

This document describes the features and characteristics of the 5 Watts WT Series products, including 2:1 input range, isolated outputs, efficiency up to 82%, input π filter, fully regulated outputs, etc.
The WT Series from XPiQ offers compact 5‑W DC/DC converters with isolated outputs and a wide input voltage range. Models cover 9‑18 VDC, 18‑36 VDC and 36‑72 VDC input ranges and provide standard 5 V, 12 V or 15 V regulated outputs.
Key features include up to 82 % efficiency, optional 3 kVDC isolation, short‑circuit protection, and a fully regulated output with tight voltage accuracy. Mechanical drawings and pin‑out diagrams are provided for both single‑ and dual‑output configurations.
| Input Voltage Range | 9‑18 VDC (WT200 series) / 18‑36 VDC (WT300 series) / 36‑72 VDC (WT400 series) |
|---|---|
| Output Voltage | 5 VDC, 12 VDC, 15 VDC (depending on model) |
| Output Isolation | 500 VDC standard, 3000 VDC on “X” package |
The WT200 series accepts an input voltage of 9 VDC to 18 VDC.
Standard isolation is 500 VDC, and a 3000 VDC isolation is available on the “X” package.
