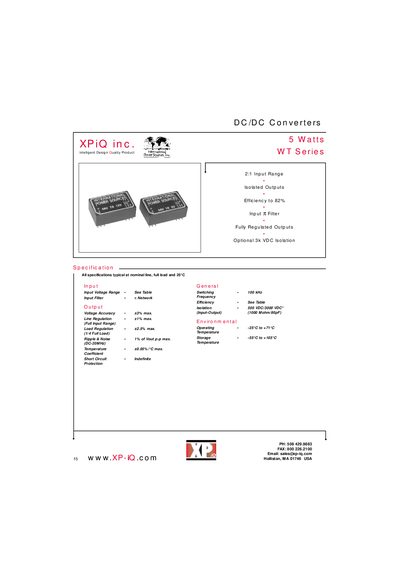

XPiQ WT Series 5 Watt DC/DC Converters feature a 2:1 input range, isolated outputs, efficiency up to 82%, input π filter, fully regulated outputs, and optional 3k VDC isolation.
The WT Series from XPiQ offers 5‑W DC/DC conversion with a 2:1 input range and isolated outputs. Typical efficiency reaches 82 % and the units are fully regulated with optional 3000 VDC isolation for high‑voltage applications.
Multiple models (WT201‑WT406) cover input ranges from 9‑18 VDC up to 36‑72 VDC and provide fixed output voltages such as 5 VDC, 12 VDC, 15 VDC, 45 VDC, 412 VDC and 415 VDC. Detailed pin‑out diagrams and mechanical dimensions are included for both single‑ and dual‑output configurations.
| Efficiency | up to 82 % |
|---|---|
| Output Isolation (standard / optional) | 500 VDC / 3000 VDC |
| Input Voltage Range (WT200 series) | 9‑18 VDC |
| Output Voltage (WT201) | 5 VDC |
The WT200 series operates from 9 VDC to 18 VDC input.
The converters can achieve up to 82 % efficiency.
Standard isolation is 500 VDC, with an optional 3000 VDC isolation package.
