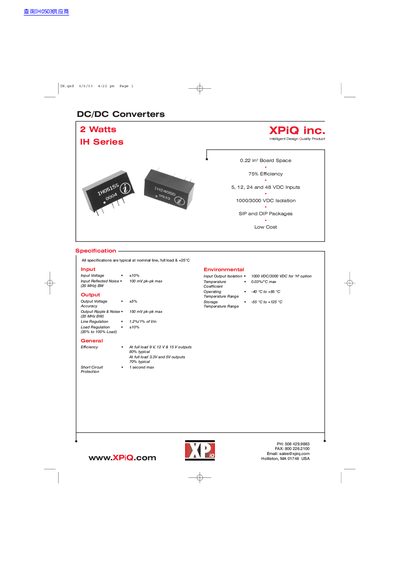

XPiQ IH Series DC/DC Converters Datasheet

IH Series DC/DC Converters Specification, provide 5, 12, 24 and 48 VDC inputs, output voltage range is 3.3V, 5V, 9V, 12V and 15V, conversion efficiency can reach 80%

Brand: XPiQ
Category: DC/DC Converter
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 384 KB
Published: 08 June, 2012
Updated: 01 October, 2023
MD5 checksum: B512291B99EC1CF73273E0597C1D40EA
PDF: XPiQ IH Series DC/DC Converters Datasheet PDF

About this manual

This document provides technical specifications for the XPiQ IH Series DC/DC converters. The series is designed to offer intelligent design quality products with a compact board space of 0.22 inches, achieving up to 75% efficiency. It supports input voltages of 5V, 12V, 24V, and 48V.

What's inside

Specification
Input Environmental
Output Temperature Range
General
Protection
OUTPUT VOLTAGE & CURRENT RATINGS
Mechanical Details
Pin Connections

Specifications

Board Space	0.22 in²
Efficiency	75% typical
Input Voltage Options	5, 12, 24 and 48 VDC
Isolation (Standard)	1000 VDC
Operating Temperature Range	-40 °C to +85°C
Output Ripple & Noise	150 mV pk-pk max

Frequently asked questions

What is the maximum output ripple and noise for these converters?

The maximum output ripple and noise is 150 mV pk-pk.

What is the operating temperature range for the IH Series converters?

The operating temperature range is from -40 °C to +85 °C.

What is the maximum input voltage for the IH Series DC/DC converters?

The maximum input voltage is 141 VDC.
