TDA1083 is a one-chip AM/FM radio with audio power amplifier. It features a large supply voltage range of VS = 3~12 V, high sensitivity, low distortion and low power consumption. It can be used in AM/FM radio and audio amplifier applications.

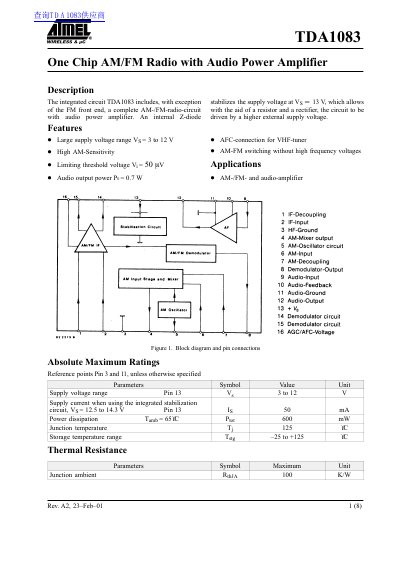

The document details the TDA1083 Rev. A2, which is an integrated circuit featuring a complete AM and FM radio circuit along with an internal audio power amplifier. It includes features such as a large supply voltage range (3 to 12 V), high AM sensitivity, and AFC connection for VHF tuners.
| Supply voltage range | 3 to 12 V |
|---|---|
| Audio output power | 0.7 W |
| Limiting threshold voltage | 50 µV |
| Junction temperature | 125 °C |
| Storage temperature range | -25 to +125 °C |
The integrated circuit supports a supply voltage range from 3 to 12 V.
The audio output power is rated at 0.7 W.
The limiting threshold voltage is 50 µV.
