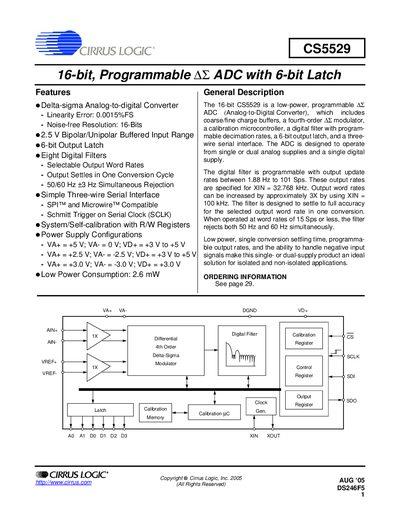

The CS5529 is a 16-bit programmable ∆Σ ADC with a linearity error of 0.0015%FS and a noise-free resolution of 16 bits. It features a 2.5V bipolar/unipolar buffered input range, a 6-bit output latch, and eight selectable digital filters. It has a simple three-wire serial interface, system/self-calibration with R/W registers, and supports multiple power supply configurations. Additionally, it has low power consumption of only 2.6mW.
The CS5529 16‑bit delta‑sigma ADC from Cirrus Logic provides high linearity (0.0015% FS) and a noise‑free resolution of 16 bits. It features a 6‑bit output latch, eight selectable digital filters, and a three‑wire serial interface compatible with SPI and Microwire.
The device operates from single or dual analog supplies (e.g., +5 V/0 V or ±2.5 V) and offers low power consumption (2.6 mW). It is available in 20‑pin PDIP and SSOP packages and is rated for -40 °C to +85 °C operation.
| Linearity Error | ±0.0015 %FS |
|---|---|
| Noise‑free Resolution | 16 Bits |
| Input Span (Bipolar) | ±2.5 V |
| Power Consumption (Normal Mode) | 2.6 mW |
| Digital Filters | Eight |
| Operating Temperature Range | -40 °C to +85 °C |
The linearity error is ±0.0015 %FS.
It supports VA+ = +5 V, VA‑ = 0 V, VD+ = +3 V to +5 V; VA+ = +2.5 V, VA‑ = -2.5 V, VD+ = +3 V to +5 V; and VA+ = +3.0 V, VA‑ = -3.0 V, VD+ = +3.0 V.
The device includes eight digital filters.
It operates from -40 °C to +85 °C.
