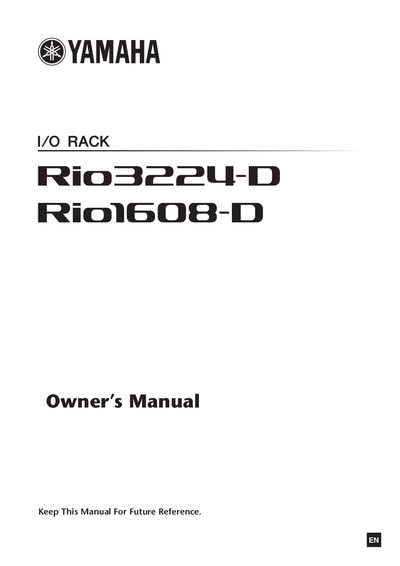

Yamaha Rio3224-D/Rio1608-D I/O Rack Owner's Manual

About this manual

This manual covers the Yamaha Rio3224-D and Rio1608-D I/O Racks, detailing the included accessories such as the Owner's Manual, AC power cable, and Dante Virtual Soundcard license code. It provides instructions for rack mounting, including recessed installation, and explains the Dante network features supported by the device.

What's inside

• Introduction
• Accessories
• Features
• Firmware Updates
• Precautions for Rack Mounting
• About Dante
• Controls and Functions
• Front Panel
• Rear Panel
• Troubleshooting

Frequently asked questions

What accessories are included in the package?

The package includes the Owner's Manual, an AC power cable, and a Dante Virtual Soundcard license code.

What safety warning is located on the top of the unit?

The unit displays a warning stating that no user-serviceable parts are inside and that servicing must be referred to qualified personnel.

What specific wire colors must be connected to the earth terminal in the plug?

The wire colored GREEN-and-YELLOW must be connected to the terminal marked E, the safety earth symbol, or colored GREEN or GREEN-and-YELLOW.
