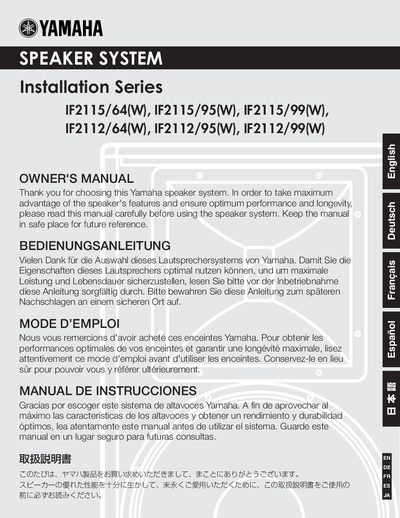

YAHAMA IF2115M/64(W) IF2115M/95(W) IF2115M/99(W) IF2112M/64(W) IF2112M/95(W) IF2112M/99(W) Manual

About this manual

This manual provides installation guidelines, safety precautions, and operating procedures for the Yamaha IF2115 and IF2112 speaker systems. It covers topics such as mounting hardware selection, suspension installation using eye bolts, and proper wiring configurations for bi-amp or passive modes.

The document details specific handling cautions to prevent damage to the speakers and hearing loss, including power-on sequences with amplifiers and volume level management. It also explains how to rotate the horn from vertical to horizontal orientation.

What's inside

• Safety Precautions
• Handling Caution
• Bi-Amp/Passive Switch
• Neutrik Speakon NL4 Plug Wiring
• Suspended Installation
• Using Eye Bolts for Suspension
• Rotatable Horn

Frequently asked questions

What is the maximum strength of the suspension points on the speaker?

The strength of the suspension points on the speaker is 60 kg per point (maximum).

How many eye bolts should be used for suspended installations?

You should use three or more eye bolts for suspended installations.
